🔹 Key Functions
• Diagnostic Trouble Codes (DTCs): Read and clear fault codes across all vehicle systems.
• Live Data Streaming: Monitor real-time sensor and ECU data.
• Guided Diagnostics: Step-by-step troubleshooting for accurate fault identification.
• ECU Programming & Reprogramming: Program and update engine, transmission, ABS, airbag, and other control modules.
• Key Programming: Add, delete, or reprogram keys for vehicles equipped with immobilizer systems.
• Module Configuration: Perform adaptations, calibrations, and special function procedures.
• Actuator Tests: Activate and test individual components to verify functionality.
• Software Updates: Update vehicle modules and maintain compatibility with the latest IDS software.
🔹 Compatibility
• Vehicle Brands: Ford, Lincoln, Mazda
• Supported Models: Extensive coverage of models from the 1990s to the latest vehicles (varies by IDS software version)
• Supported Protocols: OBD-II, CAN, J1850, and other Ford proprietary protocols
🔹 Hardware & Software

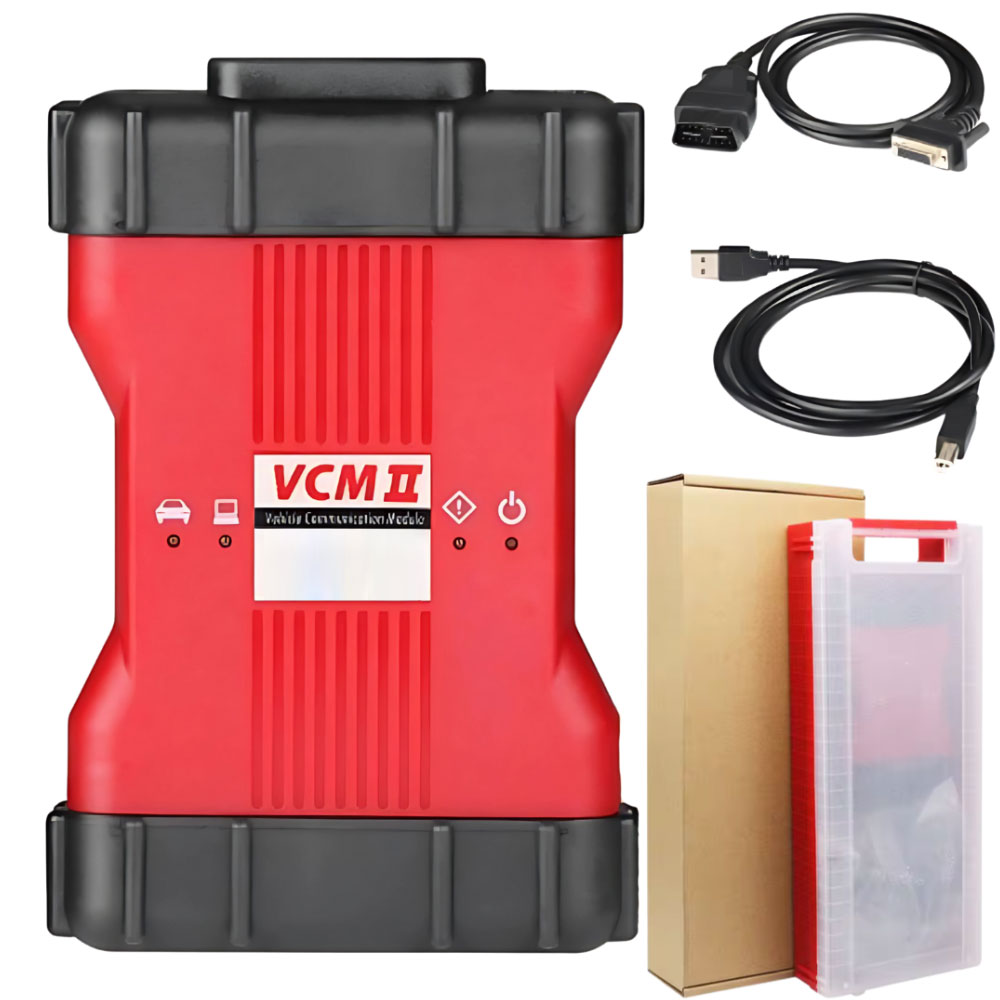

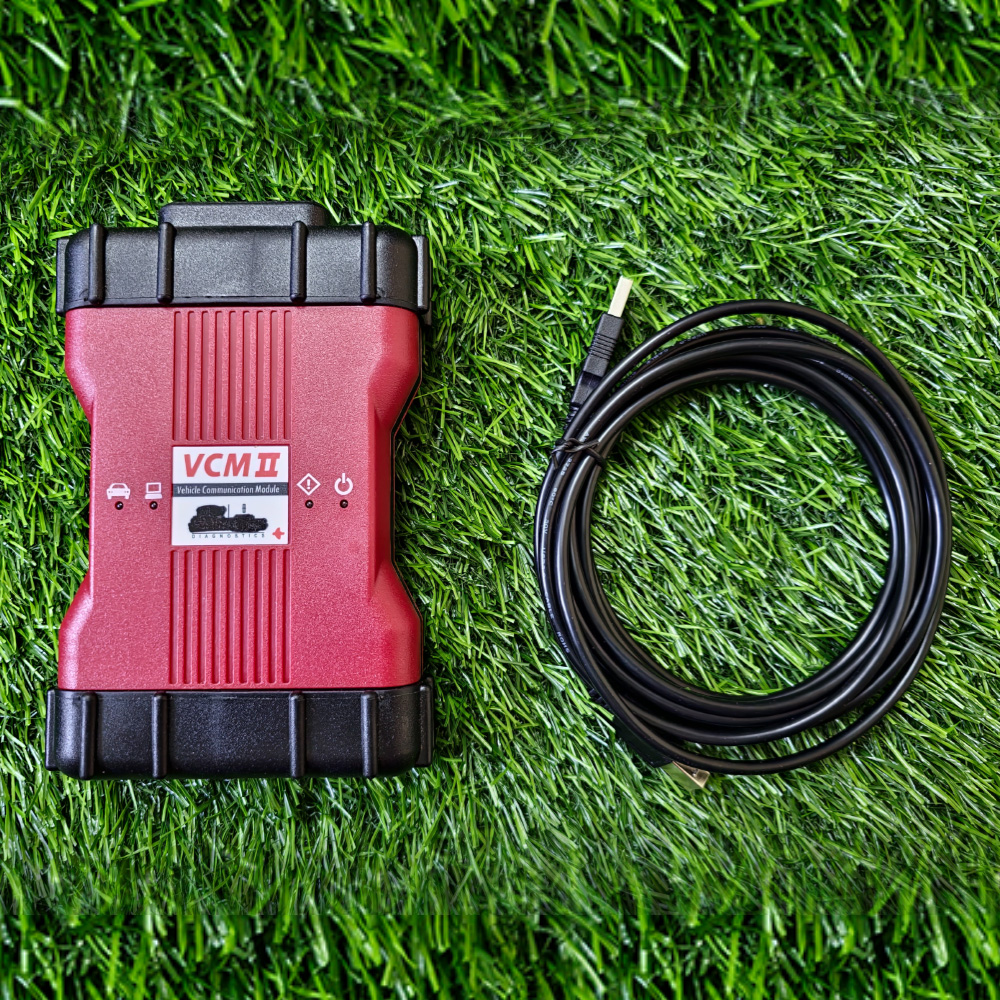

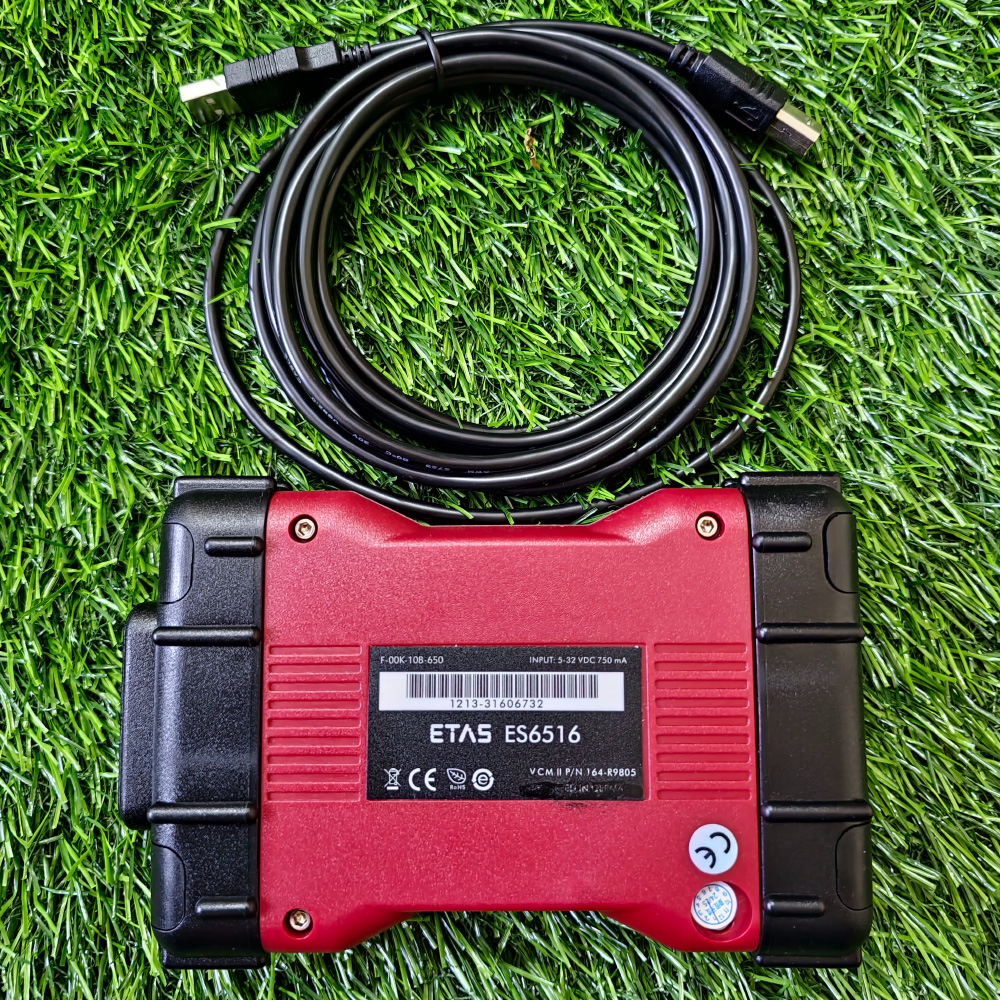

• Interface: Compact, durable VCM II device
• Connection: USB or Ethernet for reliable, high-speed data transfer
• Software: Ford IDS (Integrated Diagnostic Software) for Windows PCs
• System Requirements: Windows 7/8/10, minimum 2GB RAM, 10GB+ free storage
• Indicators: LED indicators for power and communication status
🔹 Advantages
✅ Full dealership-level diagnostics and programming for Ford, Lincoln, and Mazda vehicles
✅ Supports advanced key programming, ECU reprogramming, and module adaptations
✅ Reliable, high-speed USB and Ethernet connectivity
✅ Portable and rugged design for workshop or mobile use
✅ Comprehensive vehicle coverage and ongoing IDS software updates
🔹 Limitations
⚠️ Requires Windows PC to operate; not compatible with macOS or Linux
⚠️ Advanced programming and key functions require technical knowledge
⚠️ Software updates must be maintained for new vehicle model compatibility
🔹 Ideal Users
• Professional mechanics and service centers
• Automotive electricians and diagnostic specialists
• Technicians performing ECU programming and key management
• Enthusiasts performing advanced DIY vehicle maintenance
✅ Summary: The VCM II Diagnostic Tool is a versatile, professional, and reliable device that provides complete diagnostic, programming, key management, and module adaptation capabilities for Ford, Lincoln, and Mazda vehicles. With high-speed connectivity, dealership-level access, and comprehensive system coverage, it is an indispensable tool for efficient vehicle diagnostics, repairs, and maintenance.
